Miniature slow-blow fuse, 2.5A current rating, 250V voltage rating, featuring a glass body and cartridge holder mount. This fuse offers a time-delay blow characteristic and operates within a temperature range of -55°C to 125°C. It has a resistance of 30.45mR and a power dissipation of 1.6W. Approvals include UL, CSA, VDE, CE, CCC, PSE, and SEMKO, with RoHS compliance. Supplied in bulk packaging with 1000 units per package.
Resistance30.45mR
Voltage Rating250V
Current Rating2.5A
MountingHolder
Quick Jump:
Technical Specifications
Littelfuse 021902.5MXAP technical specifications.
General
| Approvals | UL, CSA, VDE, CE, CCC, PSE, SEMKO |
| Blow Characteristic | TIME DELAY |
| Body Material | Glass |
| Current Rating | 2.5A |
| DC Cold Resistance | 30.5mR |
| Diameter | 5mm |
| Fuse Current | 2.5A |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Holder |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 1.6W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 30.45mR |
| RoHS Compliant | Yes |
| Series | 219XA |
| Termination | Clip |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 021902.5MXAP Datasheet
Download the complete datasheet for Littelfuse 021902.5MXAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

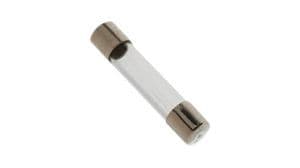

Product Images
