Miniature slow-blow cartridge fuse, 3.15A current rating and 250V voltage rating. Features a glass body, brass contacts, and 5 x 20mm dimensions. This fuse is RoHS compliant, lead-free, and operates across a wide temperature range from -50°C to 125°C. Approvals include UL, CSA, VDE, CE, CCC, PSE, and SEMKO.
Resistance23mR
Voltage Rating250V
Current Rating3.15A
MountingHolder
Quick Jump:
Technical Specifications
Littelfuse 02193.15MXAP technical specifications.
General
Approvals
UL, CSA, VDE, CE, CCC, PSE, SEMKO
Blow Characteristic
TIME DELAY
Body Material
Glass
Contact Material
Brass
Current Rating
3.15A
DC Cold Resistance
23.1mR
Diameter
5mm
Fuse Current
3.15A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-50°C
Mount
Holder
Package Quantity
1000
Packaging
Bulk
Power Dissipation
1.6W
Reach SVHC Compliant
No
Resistance
23mR
RoHS Compliant
Yes
Series
219XA
Termination
Clip
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 02193.15MXAP Datasheet
Download the complete datasheet for Littelfuse 02193.15MXAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

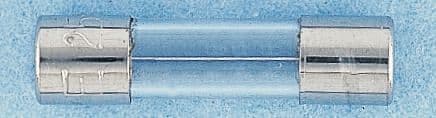

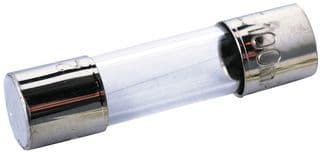

Product Images
