Axial leaded PTC resettable fuse, 5A current rating, 125VAC/VDC voltage rating. Features a glass body with axial termination, suitable for through-hole or clip mounting. Operates across a wide temperature range from -55°C to 125°C with a low DC cold resistance of 18.6mR. RoHS compliant and UL, CSA, CE, PSE approved for reliable circuit protection.
PackageAxial
Storage4.5mm
Resistance18.6mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0230005.HXP technical specifications.
General
Approvals
UL, CSA, CE, PSE
Body Material
Glass
Package/Case
Axial
Current Rating
5A
DC Cold Resistance
18.6mR
Diameter
4.7mm
Fuse Current
5A
Lead Free
Lead Free
Length
14.48mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole, Clip
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
Resistance
18.6mR
RoHS Compliant
Yes
Series
230
Size
4.5mm
Termination
Axial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0230005.HXP Datasheet
Download the complete datasheet for Littelfuse 0230005.HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

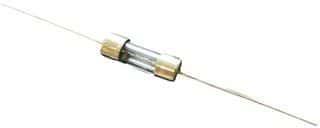

Product Images
