Littelfuse
023002.5MXP

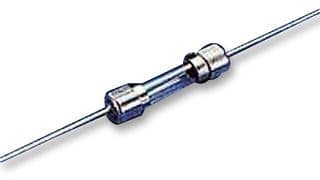

Fuse Subminiature Slow Blow Acting 2.5A 250V Axial 5 X 15mm Glass Bulk CE/CSA/PSE/UL
PackageAxial
Resistance49.8mR
Current Rating2.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse 023002.5MXP technical specifications.
General
| Blow Characteristic | TIME DELAY |
| Body Length | 14.48mm |
| Package/Case | Axial |
| Current Rating | 2.5A |
| DC Cold Resistance | 50.2mR |
| Diameter | 4.7mm |
| Fuse Current | 2.5A |
| Lead Free | Lead Free |
| Length | 14.48mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Outside Diameter | 4.7mm |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 49.8mR |
| RoHS Compliant | Yes |
| Series | 230 |
| Termination | Axial |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 023002.5MXP Datasheet
Download the complete datasheet for Littelfuse 023002.5MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
