Miniature medium time delay acting fuse, 2A current rating, 250V AC/DC working voltage. Features a 5 x 20mm glass body with brass, nickel-plated clip terminations. Designed for holder mounting, this fuse offers a DC cold resistance of 68.4mR and operates within a temperature range of -55°C to 125°C. Approvals include UL, CSA, CE, PSE, and K-Mark. Packaged in bulk, 1000 units per package.
Package100
Storage20mm
Resistance68mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0234002.MXP technical specifications.
General
Approvals
UL, CSA, CE, PSE, K-Mark
Body Diameter
5mm
Body Material
Glass
Package/Case
100
Contact Material
Brass
Contact Plating
Nickel
Current Rating
2A
DC Cold Resistance
68.4mR
Diameter
5.2mm
Fuse Current
2A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
68mR
RoHS Compliant
Yes
Series
234
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0234002.MXP Datasheet
Download the complete datasheet for Littelfuse 0234002.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

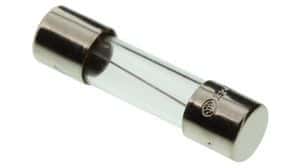

Product Images
