Medium blow electric fuse, 3A current rating, 250VAC voltage rating, and 100A interrupt capacity. Features a 5x20mm glass body with brass, nickel-plated clip terminations for holder mounting. Operates across a wide temperature range from -55°C to 125°C with a DC cold resistance of 43.1mR. Approvals include UL, CSA, CE, PSE, and K-Mark, with RoHS compliance.
Storage20mm
Resistance43mR
Voltage Rating250V
Current Rating3A
Quick Jump:
Technical Specifications
Littelfuse 0234003.MXP technical specifications.
General
Approvals
UL, CSA, CE, PSE, K-Mark
Body Diameter
5mm
Body Material
Glass
Contact Material
Brass
Contact Plating
Nickel
Current Rating
3A
DC Cold Resistance
43.1mR
Diameter
5.2mm
Fuse Current
3A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder, Through Hole
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
43mR
RoHS Compliant
Yes
Series
234
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0234003.MXP Datasheet
Download the complete datasheet for Littelfuse 0234003.MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

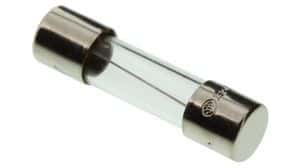

Product Images
