Miniature medium time-delay acting fuse, 6.3A current rating, 250V AC/DC working voltage. Features a 5 x 20mm ceramic cartridge body with brass, nickel-plated contacts. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 16.8mR. Bulk packaged, lead-free, and RoHS compliant, with UL, CSA, CE, PSE, and K-Mark approvals.
PackageCeramic
Storage20mm
Resistance17mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 023406.3MXP technical specifications.
General
Approvals
UL, CSA, CE, PSE, K-Mark
Body Diameter
5mm
Body Material
Ceramic
Package/Case
Ceramic
Contact Material
Brass
Contact Plating
Nickel
Current Rating
6.3A
DC Cold Resistance
16.8mR
Diameter
5.2mm
Fuse Current
6.3A
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Holder
Outside Diameter
5.2mm
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
17mR
RoHS Compliant
Yes
Series
234
Size
20mm
Termination
Clip
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 023406.3MXP Datasheet
Download the complete datasheet for Littelfuse 023406.3MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

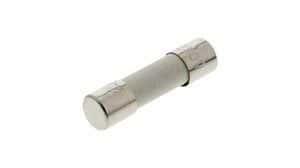

Product Images
