Subminiature fuse, very fast acting, with a 50mA current rating and 125V voltage rating. Features radial leads with a 2.54mm pitch, 0.635mm lead diameter, and a 6 x 8mm body size. Constructed from thermoplastic, this lead-free fuse is RoHS compliant and suitable for through-hole PCB mounting. Operating temperature range is -55°C to 85°C.
PackageRadial
Storage8.89mm
Resistance3.2R
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0273.050H technical specifications.
General
Approvals
UL, CSA, QPL
Body Diameter
6.35mm
Body Height
8.89mm
Body Length
8.89mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
50mA
DC Cold Resistance
3.2R
Diameter
6.35mm
Fuse Current
50mA
Height
0.35inch
Lead Diameter
0.635mm
Lead Free
Lead Free
Lead Length
4.32mm
Lead Pitch
2.54mm
Length
8.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
3.2R
RoHS Compliant
Yes
Series
MICRO™ 273
Size
8.89mm
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Wire/Cable Diameter
0.64mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0273.050H Datasheet
Download the complete datasheet for Littelfuse 0273.050H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

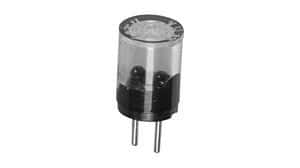

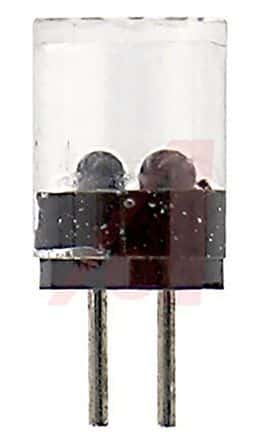

Product Images
