Very fast-acting electric fuse with a 125mA current rating and 125VAC/125VDC voltage rating. Features a 10000A interrupting rating and a low DC cold resistance of 1R. Designed for through-hole PCB mounting with radial leads, a 6.35mm body diameter, and an 8.89mm length. Constructed with a thermoplastic body and compliant with RoHS standards.
PackageRadial
Storage8.89mm
Resistance1R
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0273.125H technical specifications.
General
Approvals
UL, CSA, QPL
Body Diameter
6.35mm
Body Height
8.89mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
125mA
DC Cold Resistance
1R
Diameter
6.35mm
Fuse Current
125mA
Lead Free
Lead Free
Lead Length
4.32mm
Length
8.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1R
RoHS Compliant
Yes
Series
MICRO™ 273
Size
8.89mm
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Wire/Cable Diameter
0.64mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0273.125H Datasheet
Download the complete datasheet for Littelfuse 0273.125H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

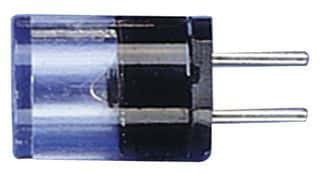

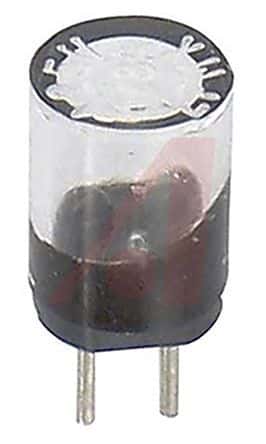

Product Images
