Subminiature very fast-acting fuse with a 300mA current rating and 125V voltage rating. Features a radial package with dimensions of 6.35mm diameter and 8.89mm height, constructed from thermoplastic. Designed for through-hole PCB mounting with lead-free, RoHS-compliant construction. Operates within a temperature range of -55°C to 85°C, with a DC cold resistance of 1.25 Ohms. Bulk packaging includes 100 units.
PackageRadial
Storage8.89mm
Resistance1.25R
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0273.300H technical specifications.
General
Approvals
UL, CSA
Body Diameter
6.35mm
Body Height
8.89mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
300mA
DC Cold Resistance
1.25R
Diameter
6.35mm
Fuse Current
300mA
Lead Free
Lead Free
Lead Length
4.32mm
Length
8.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
1.25R
RoHS Compliant
Yes
Series
MICRO™ 273
Size
8.89mm
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
8.89mm
Wire/Cable Diameter
0.64mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0273.300H Datasheet
Download the complete datasheet for Littelfuse 0273.300H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

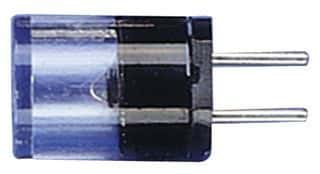

Product Images
