Subminiature fuse, very fast acting, with a 600mA current rating and 125V AC/DC voltage rating. Features a radial package with dimensions of 6.35mm diameter and 8.89mm height, designed for through-hole PCB mounting. Constructed with a thermoplastic body and lead-free, RoHS-compliant materials. Operating temperature range from -55°C to 85°C, with a DC cold resistance of 430mR. Approvals include UL and CSA.
PackageRadial
Storage8.89mm
Resistance430mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0273.600V technical specifications.
General
Approvals
UL, CSA
Body Diameter
6.35mm
Body Height
8.89mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
600mA
DC Cold Resistance
430mR
Diameter
6.35mm
Fuse Current
600mA
Lead Free
Lead Free
Lead Length
4.32mm
Length
8.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
5
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
430mR
RoHS Compliant
Yes
Series
MICRO™ 273
Size
8.89mm
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Wire/Cable Diameter
0.64mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0273.600V Datasheet
Download the complete datasheet for Littelfuse 0273.600V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

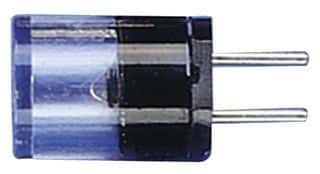

Product Images
