Micro fuse, very fast-acting, 1.5A current rating, 125V AC/DC voltage rating. Features radial termination with 0.64mm wire diameter, 4.32mm lead length, and a 6.35mm x 8.89mm thermoplastic body. Operates across a -55°C to 85°C temperature range with 57.8mR DC cold resistance. Through-hole, PCB mountable, RoHS compliant, and UL/CSA approved.
PackageRadial
Storage8.89mm
Resistance57.8mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 027301.5H technical specifications.
General
Approvals
UL, CSA
Body Diameter
6.35mm
Body Height
8.89mm
Body Material
Thermoplastic
Package/Case
Radial
Current Rating
1.5A
DC Cold Resistance
57.8mR
Fuse Current
1.5A
Lead Free
Lead Free
Lead Length
4.32mm
Length
8.89mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
57.8mR
RoHS Compliant
Yes
Series
273
Size
8.89mm
Termination
Radial
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Wire/Cable Diameter
0.64mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 027301.5H Datasheet
Download the complete datasheet for Littelfuse 027301.5H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

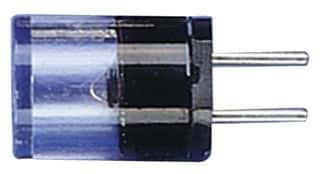

Product Images
