Automotive fuse with a 60A current rating and 32V voltage rating. Features a time delay blow characteristic and a thermoplastic body in black. Offers a DC cold resistance of 1.504mR and operates within a temperature range of -40°C to 125°C. Designed for bolt mounting with a size of 68.58mm (2.7 inches) length and 0.42 inches height. This RoHS compliant component is supplied in bulk packaging.
Current60A
Storage68.58mm
Resistance1.504mR
Voltage Rating32V
Quick Jump:
Technical Specifications
Littelfuse 0298060.ZXB technical specifications.
General
Blow Characteristic
TIME DELAY
Body Material
Thermoplastic
Color
Black
Current
60A
Current Rating
60A
DC Cold Resistance
1.504mR
Fuse Current
60A
Height
0.42inch
Lead Free
Lead Free
Length
2.7inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Bolt
Package Quantity
500
Packaging
Bulk
Reach SVHC Compliant
No
Resistance
1.504mR
RoHS Compliant
Yes
Series
MEGA® 298, Automotive
Size
68.58mm
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
0.75inch
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0298060.ZXB Datasheet
Download the complete datasheet for Littelfuse 0298060.ZXB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

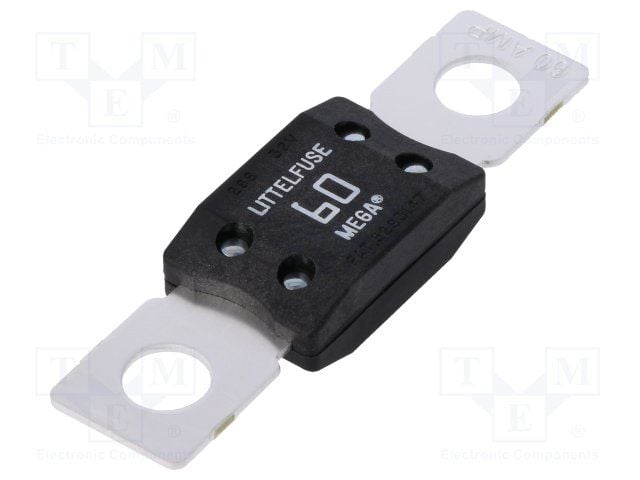

Product Images
