Littelfuse
0312.150MXP

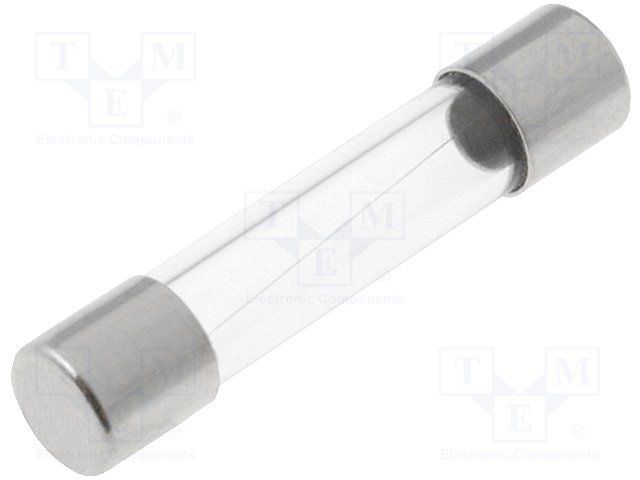

Fuse Miniature Fast Acting 0.15A 250V Holder Cartridge 6.3 X 32mm Glass Bulk CE/CSA/UL
Resistance5.13R
Current Rating150mA
MountingHolder
Quick Jump:
Technical Specifications
Littelfuse 0312.150MXP technical specifications.
General
| Approvals | UL, CSA, CE |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 150mA |
| DC Cold Resistance | 5.13R |
| Diameter | 6.35mm |
| Fuse Current | 150mA |
| Lead Free | Lead Free |
| Length | 31.75mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Holder |
| Outside Diameter | 6.35mm |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 5.13R |
| RoHS Compliant | Yes |
| Series | 312 |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0312.150MXP Datasheet
Download the complete datasheet for Littelfuse 0312.150MXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
