Littelfuse
0312020.HXP

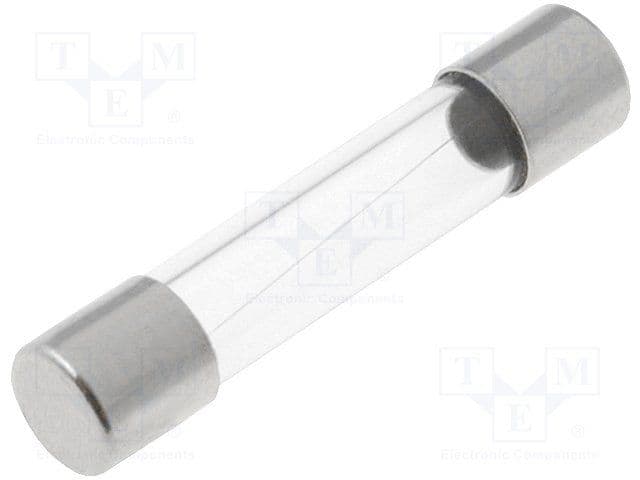

Fuse Miniature Fast Acting 20A 32V Holder Cartridge 6.3 X 32mm Glass Bulk Automotive CSA/UL/cULus
Current20A
Storage32mm
Resistance3.5mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0312020.HXP technical specifications.
General
| Approvals | CSA, cULus |
| Body Material | Glass |
| Current | 20A |
| Current Rating | 20A |
| DC Cold Resistance | 3.5mR |
| Diameter | 6.35mm |
| Lead Free | Lead Free |
| Length | 31.75mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Holder |
| Package Quantity | 100 |
| Packaging | Bulk |
| Resistance | 3.5mR |
| RoHS Compliant | Yes |
| Series | 312 |
| Size | 32mm |
| Termination | Clip |
| Voltage Rating (AC) | 32V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0312020.HXP Datasheet
Download the complete datasheet for Littelfuse 0312020.HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
