Time-lag electric fuse, 4A current rating, 250VAC voltage rating, with 200A interrupting rating. Features a glass body, axial package, and clip termination. Operates within a temperature range of -55°C to 125°C. RoHS compliant and UL, CSA, CE, PSE, K-Mark approved.
PackageAxial
Storage6.35mm
Resistance30.8mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0313004.HXP technical specifications.
General
| Approvals | UL, CSA, CE, PSE, K-Mark |
| Body Material | Glass |
| Package/Case | Axial |
| Current Rating | 4A |
| DC Cold Resistance | 31.1mR |
| Diameter | 6.35mm |
| Fuse Current | 4A |
| Lead Free | Lead Free |
| Length | 31.75mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Holder, Surface Mount, Clip |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 30.8mR |
| RoHS Compliant | Yes |
| Series | 313 |
| Size | 6.35mm |
| Termination | Clip |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0313004.HXP Datasheet
Download the complete datasheet for Littelfuse 0313004.HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

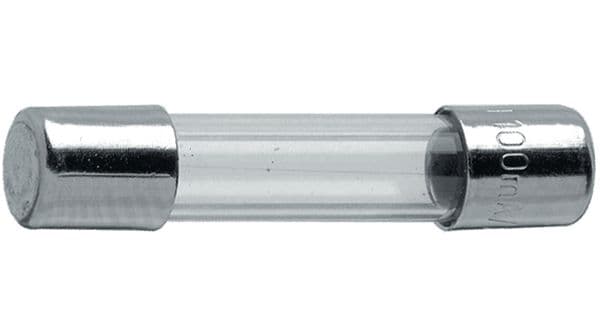

Product Images
