Fast-acting electric fuse with a 30A current rating and 250VAC/125VDC voltage rating. Features a ceramic body and package, brass contacts with nickel plating, and a 100A interrupting rating. Operates across a wide temperature range from -55°C to 125°C. Designed for inline or holder mounting with clip terminations, measuring 31.75mm in length and 6.35mm in diameter. RoHS compliant with a DC cold resistance of 1.82mR.
PackageCeramic
Storage32mm
Resistance1.82mR
Voltage Rating250V
Quick Jump:
Technical Specifications
Littelfuse 0314030.HXP technical specifications.
General
| Body Material | Ceramic |
| Package/Case | Ceramic |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 30A |
| DC Cold Resistance | 1.82mR |
| Diameter | 6.35mm |
| Fuse Current | 30A |
| Lead Free | Lead Free |
| Length | 31.75mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Holder, Surface Mount |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 1.82mR |
| RoHS Compliant | Yes |
| Series | 314 |
| Size | 32mm |
| Termination | Clip |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 125V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0314030.HXP Datasheet
Download the complete datasheet for Littelfuse 0314030.HXP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

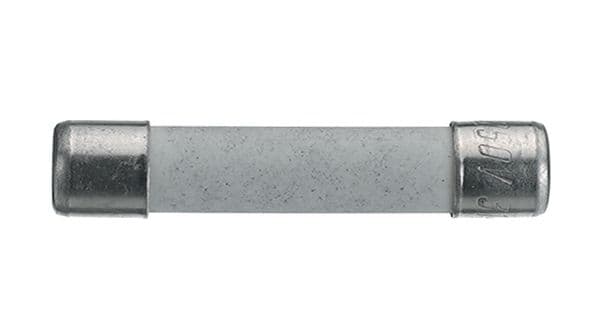

Product Images
