Fast-acting ceramic chip fuse, 7A current rating, 32V voltage rating. Features a 1206 SMD package with solder pad terminals, measuring 3.2mm x 1.6mm x 1.67mm. Offers a DC cold resistance of 10mR and a power dissipation of 760mW. Operating temperature range from -55°C to 150°C. RoHS compliant and includes CSA/UL approvals. Supplied in tape and reel packaging.
Package1206
Resistance10mR
Voltage Rating32V
Current Rating7A
Quick Jump:
Technical Specifications
Littelfuse 0437007.WR technical specifications.
General
Approvals
CSA, UR
Body Material
Ceramic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
7A
DC Cold Resistance
10mR
Depth
1.67mm
Fuse Current
7A
Height
0.032inch
Lead Free
Lead Free
Length
3.2mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
760mW
Reach SVHC Compliant
Unknown
Resistance
10mR
RoHS Compliant
Yes
Series
437
Terminal Material
Nickel
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
1.63mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0437007.WR Datasheet
Download the complete datasheet for Littelfuse 0437007.WR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

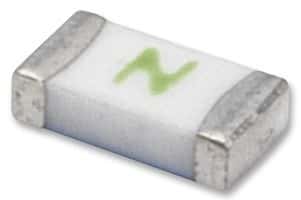

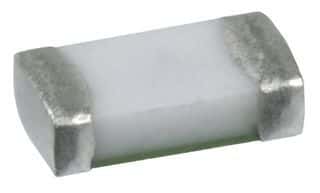

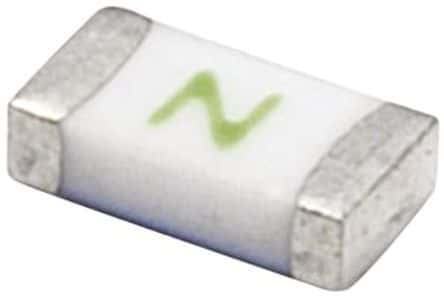

Product Images
