Very fast-acting ceramic chip fuse, 15A current rating, 65V DC rated voltage. Features a 2410 SMD/SMT package with solder pad termination, measuring 6.1mm L x 2.69mm W x 2.69mm H. Operating temperature range from -55°C to 125°C, with a DC cold resistance of 3.94mR. Lead-free and RoHS compliant, supplied in tape and reel packaging.
PackageSMD/SMT
Resistance3.94mR
Voltage Rating125V
Current Rating15A
Quick Jump:
Technical Specifications
Littelfuse 0448015.MR technical specifications.
General
| Body Material | Ceramic |
| Package/Case | SMD/SMT |
| Current Rating | 15A |
| DC Cold Resistance | 3.94mR |
| Depth | 2.69mm |
| Fuse Current | 15A |
| Height | 2.69mm |
| Lead Free | Lead Free |
| Length | 6.1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 3.94mR |
| RoHS Compliant | Yes |
| Series | NANO²® 448 |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 65V |
| DC Rated Voltage | 65V |
| Width | 2.69mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0448015.MR Datasheet
Download the complete datasheet for Littelfuse 0448015.MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

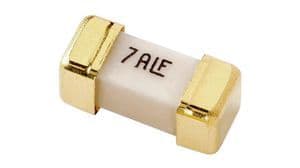

Product Images
