Very Fast Acting Chip Fuse, 100mA current rating and 125V voltage rating. Features a ceramic body, gold terminal material, and SMD/SMT package for surface mounting. Operates across a wide temperature range from -55°C to 125°C. Compliant with RoHS and includes UL, CSA approvals. Packaged in tape and reel for efficient assembly.
PackageSMD/SMT
Storage2.69mm
Resistance3.1R
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0451.100MRL technical specifications.
General
Approvals
UL, CSA
Body Material
Ceramic
Package/Case
SMD/SMT
Current Rating
100mA
DC Cold Resistance
3.1R
Depth
2.69mm
Diameter
2.69mm
Fuse Current
100mA
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
3.1R
RoHS Compliant
Yes
Series
NANO²® 451
Size
2.69mm
Terminal Material
Gold
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0451.100MRL Datasheet
Download the complete datasheet for Littelfuse 0451.100MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

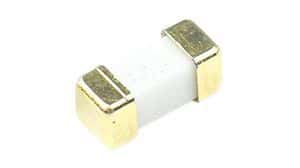

Product Images
