Very Fast Blow Electric Fuse, 500mA current rating, 125VAC/125VDC voltage rating, and 50A interrupting rating. Features a ceramic body, silver contact plating, and gold terminal material. This surface mount fuse is designed for tape and reel packaging, with dimensions of 6.1mm length, 2.69mm width, and 2.69mm height. Operating temperature range is -55°C to 125°C. UL and CSA approvals confirm its reliability.
PackageSMD/SMT
Storage2.69mm
Resistance420mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0451.500MRL technical specifications.
General
Approvals
UL, CSA
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
500mA
DC Cold Resistance
420mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
500mA
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
420mR
RoHS Compliant
Yes
Series
451
Size
2.69mm
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0451.500MRL Datasheet
Download the complete datasheet for Littelfuse 0451.500MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

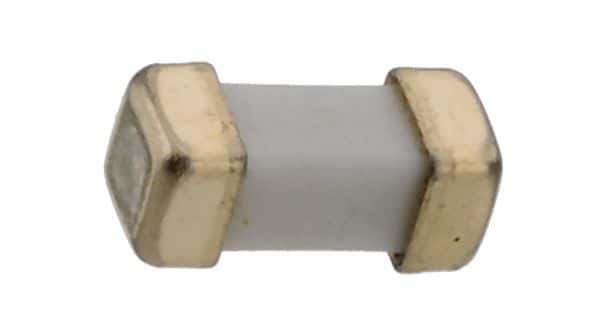

Product Images
