Very fast-acting electric fuse for circuit protection. Features a 6.3A current rating and 125VAC/125VDC voltage rating. Designed for surface mount applications with a compact SMD/SMT package. Includes silver-plated contacts and gold-plated terminals. Operates across a wide temperature range from -55°C to 125°C. RoHS and Halogen-free compliant.
PackageSMD/SMT
Resistance9.6mR
Voltage Rating125V
Current Rating6.3A
Quick Jump:
Technical Specifications
Littelfuse 045106.3MRL technical specifications.
General
Approvals
UL, CSA, PSE
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Silver
Current Rating
6.3A
DC Cold Resistance
9.6mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
6.3A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
9.6mR
RoHS Compliant
Yes
Series
NANO²® 451
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse 045106.3MRL Datasheet
Download the complete datasheet for Littelfuse 045106.3MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

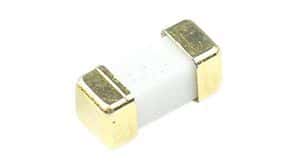

Product Images
