Surface mount electric fuse featuring a slow-blow time delay characteristic. Rated for 2A current and 125VAC/125VDC working voltage, with a 50A interrupt rating. Constructed with a ceramic body and gold-plated terminals, this fuse measures 6.1mm in length, 2.69mm in width, and 2.69mm in height. It operates within a temperature range of -55°C to 125°C and is HALOGEN FREE and RoHS COMPLIANT. Approvals include UL, CSA, and PSE.
PackageSMD/SMT
Storage2.69mm
Resistance62.5mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0452002.MRL technical specifications.
General
Approvals
UL, CSA, PSE
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Gold
Current Rating
2A
DC Cold Resistance
62.5mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
2A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
62.5mR
RoHS Compliant
Yes
Series
452
Size
2.69mm
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0452002.MRL Datasheet
Download the complete datasheet for Littelfuse 0452002.MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

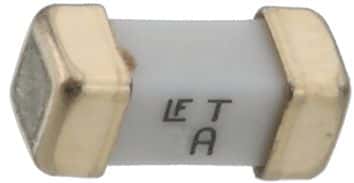

Product Images
