Surface mount electric fuse featuring a 3A current rating and 125VAC/125VDC voltage rating. This time-delay fuse offers a 50A interrupting rating and a DC cold resistance of 34mR. Constructed with a ceramic body and gold-plated terminals, it measures 6.1mm in length, 2.69mm in width, and 2.69mm in height. The component is HALOGEN FREE AND ROHS COMPLIANT, with UL, CSA, and PSE approvals.
PackageSMD/SMT
Storage2.69mm
Resistance34mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0452003.MRL technical specifications.
General
Approvals
UL, CSA, PSE
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Gold
Current Rating
3A
DC Cold Resistance
34mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
3A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
34mR
RoHS Compliant
Yes
Series
452
Size
2.69mm
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0452003.MRL Datasheet
Download the complete datasheet for Littelfuse 0452003.MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

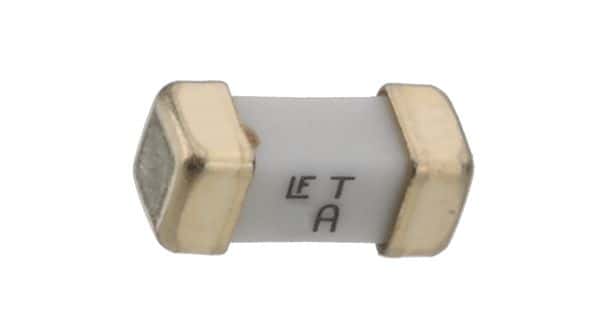

Product Images
