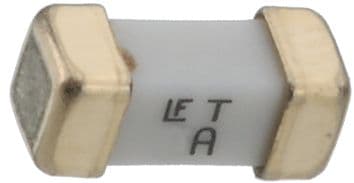

Surface mount electric fuse featuring a slow-blow time delay characteristic. Rated for 5A at 125VAC and 125VDC, with an interrupting rating of 50A. Constructed with a ceramic body and gold-plated terminals, this fuse is designed for PCB mounting and comes in a compact 6.1mm x 2.69mm x 2.69mm SMD/SMT package. It operates within a temperature range of -55°C to 125°C and is HALOGEN FREE and RoHS COMPLIANT.
PackageSMD/SMT
Resistance13.6mR
Voltage Rating125V
Current Rating5A
Quick Jump:
Technical Specifications
Littelfuse 0452005.MRL technical specifications.
General
Approvals
UL, CSA, PSE
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Gold
Current Rating
5A
DC Cold Resistance
13.6mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
5A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Moisture Sensitivity Level
1
Mount
Surface Mount, PCB
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
13.6mR
RoHS Compliant
Yes
Series
452
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0452005.MRL Datasheet
Download the complete datasheet for Littelfuse 0452005.MRL to view detailed technical specifications.
