Surface mount time delay fuse, 3.5A current rating, 125V AC/DC voltage rating. Features a ceramic body, gold-plated terminals, and SMD/SMT termination for solder pad mounting. Operates across a wide temperature range from -55°C to 125°C. Compliant with UL, CSA, and PSE safety standards, and RoHS. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Resistance22.4mR
Voltage Rating125V
Current Rating3.5A
Quick Jump:
Technical Specifications
Littelfuse 045203.5MRL technical specifications.
General
Approvals
UL, CSA, PSE
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Package/Case
SMD/SMT
Contact Plating
Gold
Current Rating
3.5A
DC Cold Resistance
22.4mR
Depth
2.69mm
Diameter
2.69mm
Fuse Current
3.5A
Height
2.69mm
Lead Free
Lead Free
Length
6.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Moisture Sensitivity Level
1
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
22.4mR
RoHS Compliant
Yes
Series
452
Terminal Material
Gold
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
2.69mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse 045203.5MRL Datasheet
Download the complete datasheet for Littelfuse 045203.5MRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

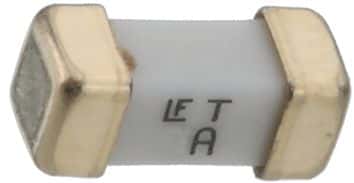

Product Images
