Very Fast Blow Electric Fuse, 30A current rating, 125VAC/72VDC voltage rating, and 100A interrupting rating. Features a ceramic body, SMD/SMT termination, and surface mount design. Operates within a temperature range of -55°C to 125°C with a DC cold resistance of 1.32mR. HALOGEN FREE AND ROHS COMPLIANT, with cULus and PSE approvals. Packaged in tape and reel for efficient assembly.
PackageSMD/SMT
Storage3.25mm
Resistance1.32mR
Voltage Rating125V
Quick Jump:
Technical Specifications
Littelfuse 0456030.ER technical specifications.
General
Approvals
cULus, PSE
Body Material
Ceramic
Package/Case
SMD/SMT
Current Rating
30A
DC Cold Resistance
1.32mR
Depth
3.12mm
Fuse Current
30A
Height
4.445mm
Lead Free
Lead Free
Length
12.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1.32mR
RoHS Compliant
Yes
Series
456
Size
3.25mm
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
72V
Width
4.445mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0456030.ER Datasheet
Download the complete datasheet for Littelfuse 0456030.ER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

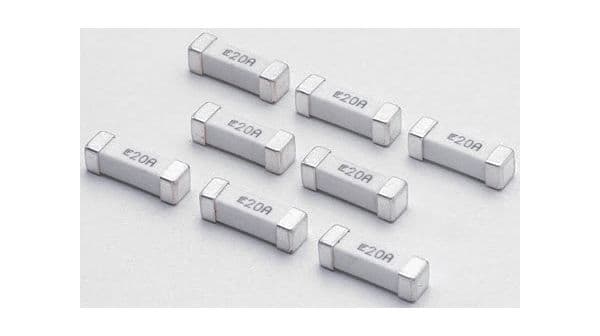

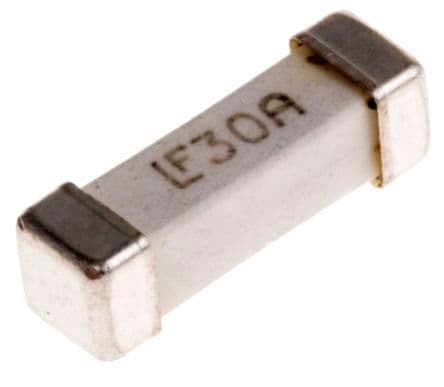

Product Images
