Surface mount chip fuse rated for 40A and 60V DC, featuring a 1.05mR cold resistance. This RoHS compliant component operates across a temperature range of -55°C to 125°C and measures 12.5mm in length, 4.45mm in width, and 4.445mm in height. Packaged on tape and reel for automated assembly, it is suitable for solder pad mounting.
PackageSMD/SMT
Storage4.45mm
Resistance1.05mR
Voltage Rating60V
Quick Jump:
Technical Specifications
Littelfuse 0456040.DR technical specifications.
General
| Package/Case | SMD/SMT |
| Current Rating | 40A |
| DC Cold Resistance | 1.05mR |
| Depth | 4.45mm |
| Fuse Current | 40A |
| Height | 4.445mm |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 1.05mR |
| RoHS Compliant | Yes |
| Series | 456 |
| Size | 4.45mm |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 60V |
| Width | 4.445mm |
| Working Voltage | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0456040.DR Datasheet
Download the complete datasheet for Littelfuse 0456040.DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

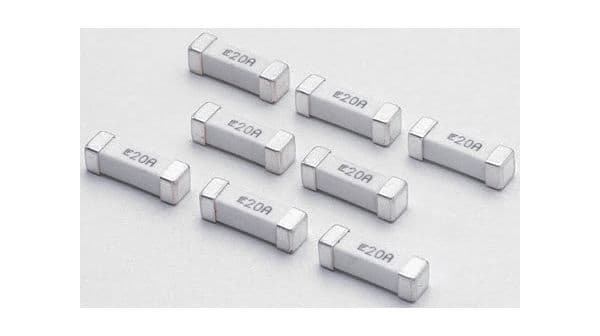

Product Images
