Very fast-acting electric fuse, 250mA current rating, 125VAC/125VDC voltage rating, and 50A interrupting rating. Features a 1206 surface mount case code (3.18mm L x 1.52mm W x 0.58mm H) with SMD/SMT termination. Operating temperature range from -55°C to 90°C. UL and CSA approved, RoHS compliant, and supplied in tape and reel packaging.
Package1206
Resistance1.15R
Voltage Rating125V
Current Rating250mA
Quick Jump:
Technical Specifications
Littelfuse 0466.250NR technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
250mA
DC Cold Resistance
710mR
Depth
1.52mm
Fuse Current
250mA
Height
0.58mm
Lead Free
Lead Free
Length
3.18mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1.15R
RoHS Compliant
Yes
Series
SlimLine™ 466
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
1.52mm
Working Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0466.250NR Datasheet
Download the complete datasheet for Littelfuse 0466.250NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

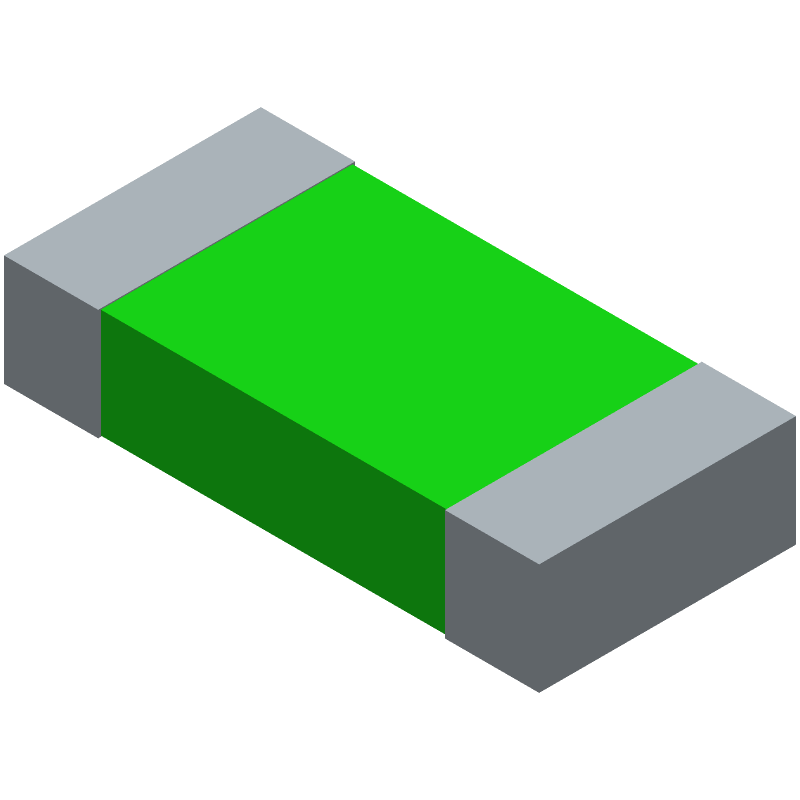

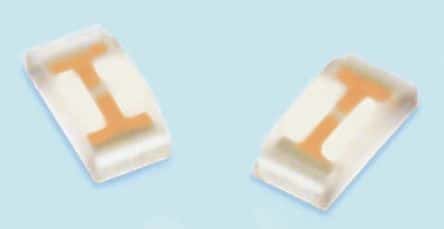

Product Images
