Surface mount chip fuse, very fast acting, with a 750mA current rating and 63V voltage rating. Features a 1206 case size (3.18mm L x 1.52mm W x 0.58mm H) and thermoplastic body. Operates across a temperature range of -55°C to 90°C, with a power dissipation of 74mW. Packaged in tape and reel for automated assembly.
Package1206
Resistance220mR
Voltage Rating63V
Current Rating750mA
Quick Jump:
Technical Specifications
Littelfuse 0466.750NR technical specifications.
General
Body Material
Thermoplastic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
750mA
DC Cold Resistance
111mR
Depth
1.52mm
Fuse Current
750mA
Height
0.58mm
Lead Free
Lead Free
Length
3.18mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
74mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
220mR
RoHS Compliant
Yes
Series
466
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
63V
DC Rated Voltage
63V
Width
1.52mm
Working Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0466.750NR Datasheet
Download the complete datasheet for Littelfuse 0466.750NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

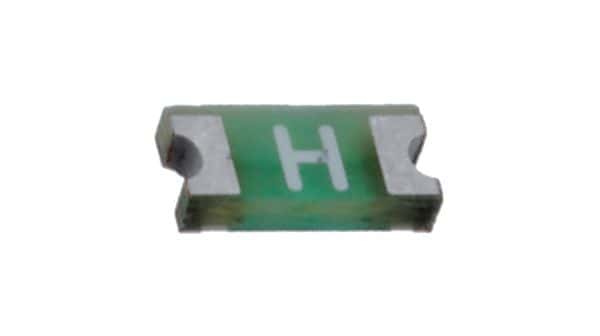

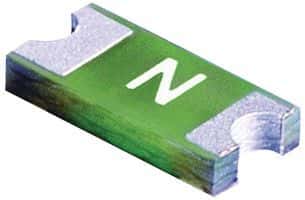

Product Images
