Very fast-acting electric fuse, 2A current rating, with 63VAC/63VDC voltage rating and 50A interrupting rating. Features a 1206 surface mount case code (3.18mm L x 1.52mm W x 0.58mm H) with SMD/SMT termination. Offers 31mR DC cold resistance and 157.5mW power dissipation, operating between -55°C and 90°C. RoHS compliant, UL and CSA approved, supplied in tape and reel packaging.
Package1206
Resistance31mR
Voltage Rating63V
Current Rating2A
Quick Jump:
Technical Specifications
Littelfuse 0466002.NR technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
2A
DC Cold Resistance
31mR
Depth
1.52mm
Fuse Current
2A
Height
0.58mm
Lead Free
Lead Free
Length
3.18mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
157.5mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
31mR
RoHS Compliant
Yes
Series
466
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
63V
DC Rated Voltage
63V
Width
1.52mm
Working Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0466002.NR Datasheet
Download the complete datasheet for Littelfuse 0466002.NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

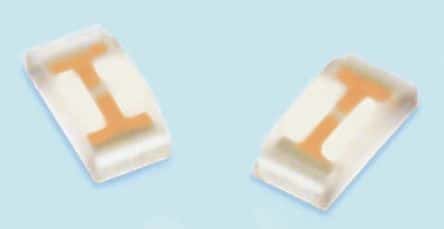

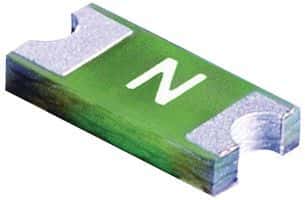

Product Images
