Very fast-acting electric fuse, 1.5A current rating, with 63VAC/63VDC voltage rating and 50A interrupting rating. Features a 1206 surface mount package with copper terminals and a thermoplastic body. Designed for supplemental circuit protection, it offers a DC cold resistance of 48mR and operates within a -55°C to 90°C temperature range. RoHS compliant and supplied in tape and reel packaging.
Package1206
Resistance46mR
Voltage Rating63V
Current Rating1.5A
Quick Jump:
Technical Specifications
Littelfuse 046601.5NR technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
1.5A
DC Cold Resistance
48mR
Depth
1.52mm
Fuse Current
1.5A
Height
0.58mm
Lead Free
Lead Free
Length
3.18mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
46mR
RoHS Compliant
Yes
Series
466
Terminal Material
Copper
Termination
SMD/SMT
Voltage Rating
63V
Voltage Rating (AC)
63V
DC Rated Voltage
63V
Width
1.52mm
Working Voltage
63V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 046601.5NR Datasheet
Download the complete datasheet for Littelfuse 046601.5NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

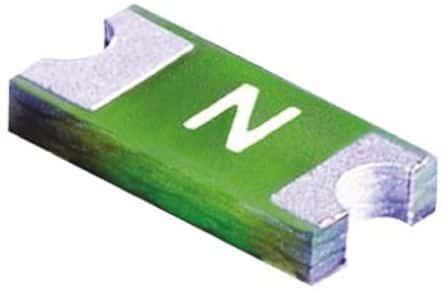

Product Images
