Very fast-acting electric fuse, 250mA current rating, 32VAC/32VDC voltage rating, with a 50A interrupting rating. Features a 0603 (1608 metric) surface mount package, 545mR resistance, and 39.6mW power dissipation. Operating temperature range from -55°C to 90°C. Thermoplastic body material, lead-free, and RoHS compliant.
Package0603
Resistance545mR
Voltage Rating32V
Current Rating250mA
Quick Jump:
Technical Specifications
Littelfuse 0467.250NR technical specifications.
General
Body Material
Thermoplastic
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
250mA
DC Cold Resistance
565mR
Depth
0.81mm
Fuse Current
250mA
Height
0.305mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
39.6mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
545mR
RoHS Compliant
Yes
Series
467
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
0.813mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0467.250NR Datasheet
Download the complete datasheet for Littelfuse 0467.250NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

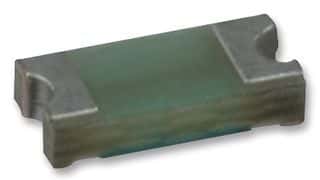

Product Images
