Surface mount chip fuse, very fast acting, with a 3.5A current rating and 32V voltage rating. Features a 0603 (1608 metric) thermoplastic case, 13.9mΩ DC cold resistance, and 15mΩ resistance. Designed for solder pad termination, this lead-free and RoHS compliant component is supplied on tape and reel.
Package0603
Resistance15mR
Voltage Rating32V
Current Rating3.5A
Quick Jump:
Technical Specifications
Littelfuse 046703.5NR technical specifications.
General
Body Material
Thermoplastic
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
3.5A
DC Cold Resistance
13.9mR
Depth
0.81mm
Fuse Current
3.5A
Height
1.09mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
90°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
259.9mW
Reach SVHC Compliant
Unknown
Resistance
15mR
RoHS Compliant
Yes
Series
467
Termination
SMD/SMT
Voltage Rating
32V
Voltage Rating (AC)
32V
DC Rated Voltage
32V
Width
1.09mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 046703.5NR Datasheet
Download the complete datasheet for Littelfuse 046703.5NR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

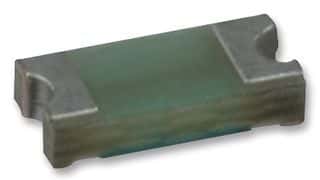

Product Images
