Surface mount electric fuse featuring a time-delay blow characteristic. Rated for 5A current and 32VDC, with a 60A interrupting rating. Housed in a 1206 (3216 metric) ceramic case with nickel terminals, it offers a low DC cold resistance of 35mR and a power dissipation of 1.08W. Operating temperature range is -55°C to 150°C. This component is halogen-free, RoHS compliant, and supplied in tape and reel packaging.
Package1206
Storage0.9mm
Resistance35mR
Voltage Rating32V
Quick Jump:
Technical Specifications
Littelfuse 0469005.WR technical specifications.
General
Approvals
UL, CSA
Blow Characteristic
TIME DELAY
Body Material
Ceramic
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Current Rating
5A
DC Cold Resistance
35mR
Depth
1.63mm
Fuse Current
5A
Height
0.9mm
Lead Free
Lead Free
Length
3.27mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
1.08W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
35mR
RoHS Compliant
Yes
Series
469
Size
0.9mm
Terminal Material
Nickel
Termination
SMD/SMT
Voltage Rating
32V
DC Rated Voltage
32V
Width
1.63mm
Working Voltage
32V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 0469005.WR Datasheet
Download the complete datasheet for Littelfuse 0469005.WR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

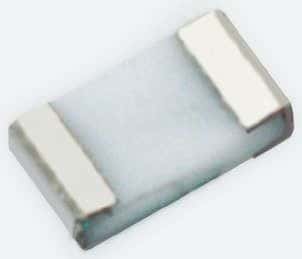

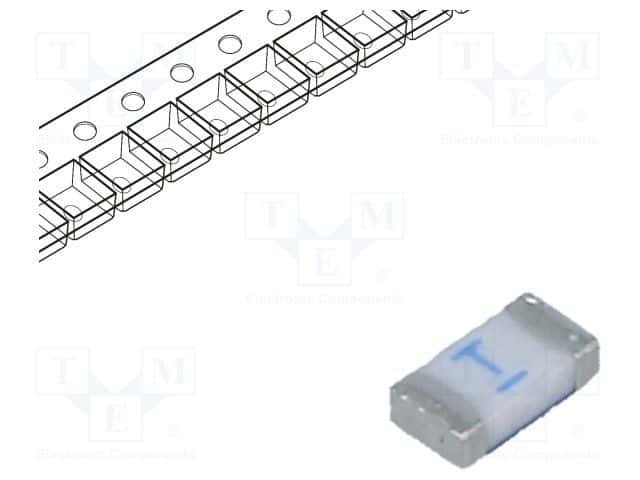

Product Images
