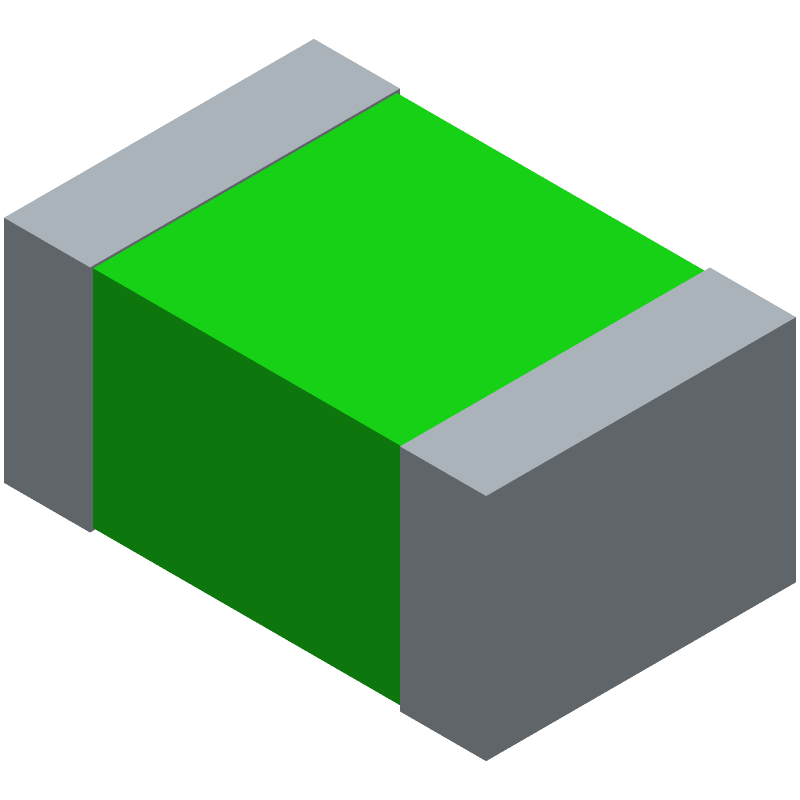

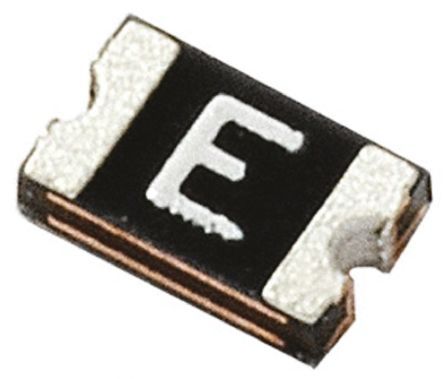

Surface mount PTC resettable fuse featuring a 15V DC voltage rating and 100mA hold current. This component offers a 300mA trip current and a maximum interrupt current of 100A. With a 0.5W power dissipation and 1.5s time to trip, it operates within a -40°C to 85°C temperature range. The 0805 package size (2.2mm x 1.5mm x 1mm) is suitable for SMD solder pad termination and is supplied in tape and reel packaging.
Package0805
Resistance6R
Voltage Rating15V
Current Rating100A
Quick Jump:
Technical Specifications
Littelfuse 0805L010YR technical specifications.
General
| Approvals | cULus, TUV |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Current Rating | 100A |
| Height | 1mm |
| Hold Current | 100mA |
| Length | 2.2mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Voltage Rating (DC) | 15V |
| Mount | Surface Mount |
| Operating Supply Voltage | 15V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| Resistance | 6R |
| RoHS Compliant | Yes |
| Series | 0805L |
| Terminal Material | Copper |
| Termination | SMD/SMT |
| Time to Trip | 1.5s |
| Trip Current | 300mA |
| Voltage Rating | 15V |
| DC Rated Voltage | 15V |
| Width | 1.5mm |
| Working Voltage | 15V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 0805L010YR Datasheet
Download the complete datasheet for Littelfuse 0805L010YR to view detailed technical specifications.
