Unidirectional TVS Diode for surge suppression, featuring a 1.5kW peak pulse power rating and 104.8A peak pulse current capability. This component offers a 10V DC rated voltage with a reverse standoff voltage of 8.55V and a clamping voltage of 14.5V. Operating across a temperature range of -55°C to 175°C, it has a maximum power dissipation of 6.5W and a leakage current of 10uA. The through-hole mount DO-201 package is RoHS compliant and designed for axial termination.
PackageDO-201
MountingThrough Hole
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Littelfuse 1.5KE10A technical specifications.
General
Package/Case
DO-201
Clamping Voltage
14.5V
Clamping Voltage-Max
14.5V
Diameter
5.3mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
10uA
Length
9.5mm
Max Breakdown Voltage
10.5V
Min Breakdown Voltage
9.5V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
6.5W
Max Surge Current
104.8A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
8.55V
Package Quantity
1200
Packaging
Tape and Reel
Peak Pulse Current
104.8A
Peak Pulse Power
1.5kW
Polarity
Unidirectional
Power Dissipation
1.5kW
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
9.5V
Reverse Standoff Voltage
8.55V
RoHS Compliant
Yes
Series
1.5KE
Termination
Axial
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Littelfuse 1.5KE10A Datasheet
Download the complete datasheet for Littelfuse 1.5KE10A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

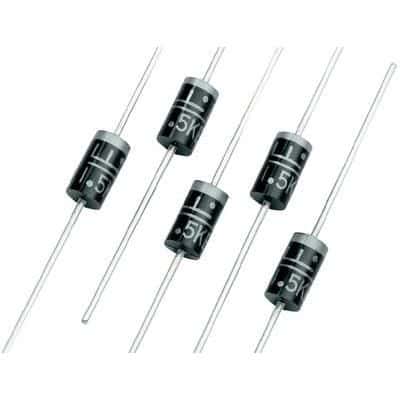

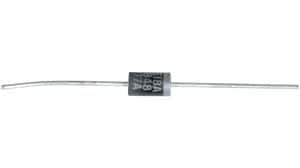

Product Images
