Unidirectional TVS diode for surge suppression, featuring a 7.02V reverse standoff voltage and 8.2V DC rated voltage. This surface mount component, housed in a DO-214AB package, offers a 12.1V clamping voltage and a peak pulse power rating of 1.5kW. Operating across a temperature range of -55°C to 150°C, it handles a peak pulse current of 125.6A with a maximum reverse leakage current of 200uA. Lead-free and RoHS compliant, it is supplied on tape and reel.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse 1.5SMC8.2A technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 12.1V |
| Diode Type | ZENER |
| Height | 2.62mm |
| Lead Free | Lead Free |
| Length | 8.13mm |
| Max Breakdown Voltage | 8.61V |
| Min Breakdown Voltage | 7.79V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 200uA |
| Max Surge Current | 125.6A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 7.02V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 125.6A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 7.02V |
| Reverse Voltage | 7.02V |
| RoHS Compliant | Yes |
| Series | 1.5SMC |
| Termination | SMD/SMT |
| DC Rated Voltage | 8.2V |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1.5SMC8.2A Datasheet
Download the complete datasheet for Littelfuse 1.5SMC8.2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

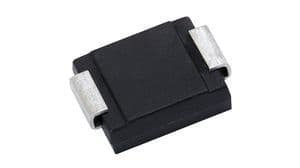

Product Images
