Littelfuse
1812L125/6PR
PTC Resettable Fuse, 0.05ohm, Surface Mount, CHIP, 1812, HALOGEN FREE AND ROHS COMPLIANT
Package1812
Resistance184mR
Voltage Rating6V
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse 1812L125/6PR technical specifications.
General
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Hold Current | 1.25A |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Resistance | 184mR |
| RoHS Compliant | Yes |
| Series | POLY-FUSE®, 1812L |
| Termination | SMD/SMT |
| Time to Trip | 400ms |
| Trip Current | 2.5A |
| Working Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1812L125/6PR Datasheet
Download the complete datasheet for Littelfuse 1812L125/6PR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

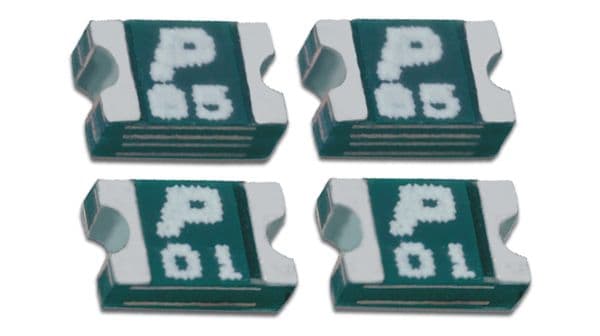

Product Images
