Radial leaded, time-delay PTC resettable fuse with a 2A current rating and 250V AC/DC voltage rating. Features a low 29.8mR DC cold resistance and operates within a -40°C to 125°C temperature range. Compliant with RoHS and UL94 V-0 flammability rating, this component is VDE, cULus, CQC, PSE, SEMKO, and KC approved. Supplied in bulk packaging with 1400 units per package.
PackageRadial
Current2A
Resistance29.8mR
Current Rating2A
Quick Jump:
Technical Specifications
Littelfuse 39212000440 technical specifications.
General
Approvals
VDE, cULus, CQC, PSE, SEMKO, KC
Blow Characteristic
TIME DELAY
Package/Case
Radial
Color
Brown
Current
2A
Current Rating
2A
DC Cold Resistance
29.8mR
Flammability Rating
UL94 V-0
Fuse Current
2A
Height
0.315inch
Lead Free
Lead Free
Length
0.335inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1400
Packaging
Bulk
Reach SVHC Compliant
Unknown
Resistance
29.8mR
RoHS Compliant
Yes
Series
TE5® 392
Termination
Radial
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Littelfuse 39212000440 Datasheet
Download the complete datasheet for Littelfuse 39212000440 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

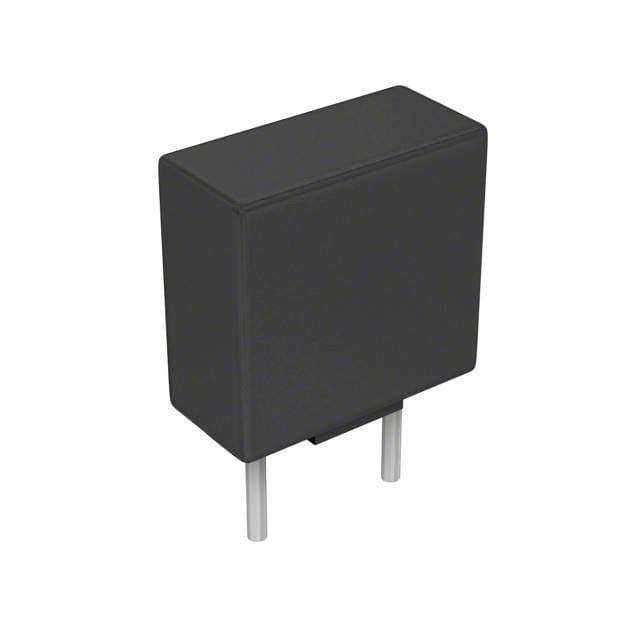

Product Images
