Bidirectional transient voltage suppressor diode offering 380V reverse standoff voltage and 520V clamping voltage. Features a 443V maximum breakdown voltage and 401V minimum breakdown voltage, with a 2nF capacitance. Designed for through-hole mounting with axial termination in an ultra-compact plastic package. Operates across a -55°C to 125°C temperature range, capable of handling 3kA peak pulse current. This silicon diode is halogen-free and RoHS compliant.
PackageAxial
Capacitance2nF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Littelfuse AK3-380C technical specifications.
General
Capacitance
2nF
Package/Case
Axial
Clamping Voltage
520V
Diode Type
ZENER
Max Breakdown Voltage
443V
Min Breakdown Voltage
401V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Surge Current
3kA
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Operating Supply Voltage
380V
Packaging
Bulk
Peak Pulse Current
3kA
Polarity
Bidirectional
Power Line Protection
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
380V
RoHS Compliant
Yes
Series
AK3
Termination
Axial
Compliance
RoHS
Compliant
Datasheet
Littelfuse AK3-380C Datasheet
Download the complete datasheet for Littelfuse AK3-380C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

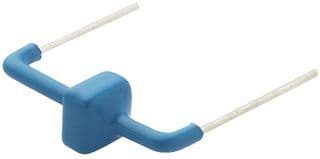

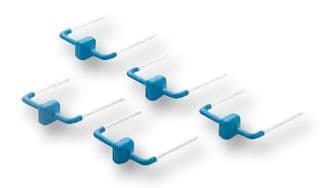

Product Images
