Bidirectional transient voltage suppressor diode offering 6kW peak pulse power and 6kA peak pulse current. Features a 430V reverse standoff voltage, 440V minimum breakdown voltage, and 625V clamping voltage. This silicon diode operates across a -55°C to 150°C temperature range with a low 20µA leakage current. Packaged in an axial plastic package for through-hole mounting, it is HALOGEN FREE and RoHS COMPLIANT.
PackageAxial
Capacitance1nF
MountingThrough Hole
PolarityBidirectional
Quick Jump:
Technical Specifications
Littelfuse AK6-430C technical specifications.
General
Capacitance
1nF
Package/Case
Axial
Clamping Voltage
625V
Diode Type
ZENER
Leakage Current
20uA
Min Breakdown Voltage
440V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
6kA
Mount
Through Hole
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
430V
Package Quantity
56
Packaging
Bulk
Peak Pulse Current
6kA
Peak Pulse Power
6kW
Polarity
Bidirectional
Power Line Protection
No
Reverse Breakdown Voltage
440V
Reverse Standoff Voltage
430V
RoHS Compliant
Yes
Series
AK6
Termination
Axial
Compliance
RoHS
Compliant
Datasheet
Littelfuse AK6-430C Datasheet
Download the complete datasheet for Littelfuse AK6-430C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

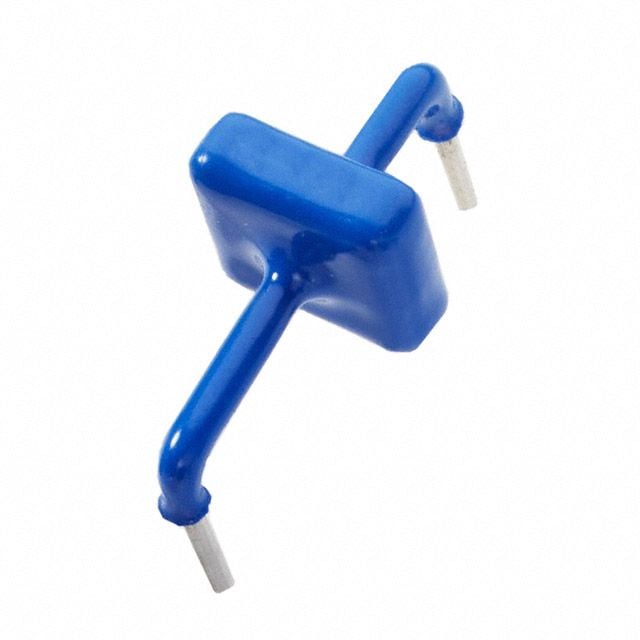

Product Images
