Fast-acting electric fuse with a 15A current rating and 600V AC voltage rating. Features a 200,000A interrupting rating and 300V DC rated voltage. Constructed with lead-free materials and a resistance of 7.4mR. Designed for holder mounting with clip terminations, measuring 38.1mm in length. RoHS compliant.
Current15A
Resistance7.4mR
Voltage Rating600V
Current Rating15A
Quick Jump:
Technical Specifications
Littelfuse KLKR015.T technical specifications.
General
| Current | 15A |
| Current Rating | 15A |
| Fuse Current | 15A |
| Lead Free | Lead Free |
| Length | 38.1mm |
| Mount | Holder |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 7.4mR |
| RoHS Compliant | Yes |
| Series | KLKR |
| Termination | Clip |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 300V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse KLKR015.T Datasheet
Download the complete datasheet for Littelfuse KLKR015.T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

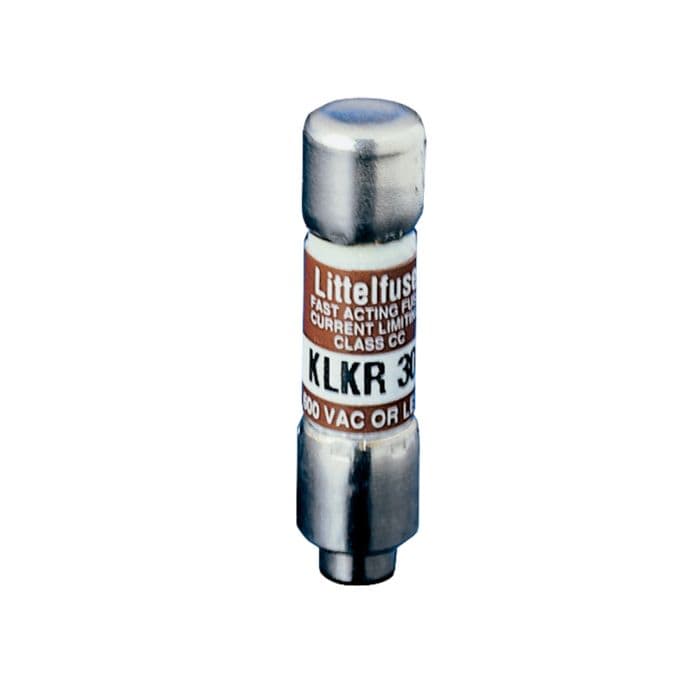

Product Images
