Littelfuse
L401E5
4 Quadrant Logic Level TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92, ROHS COMPLIANT, PLASTIC PACKAGE-3
PackageTO-92
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse L401E5 technical specifications.
General
| Package/Case | TO-92 |
| Current Rating | 1A |
| Hold Current | 10mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1A |
| RoHS Compliant | Yes |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse L401E5 Datasheet
Download the complete datasheet for Littelfuse L401E5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

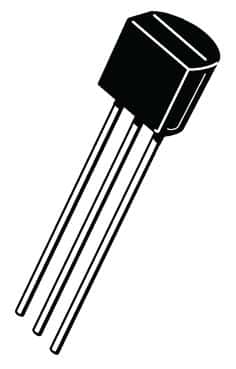

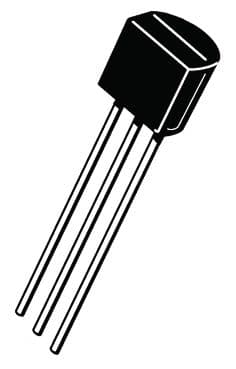

Product Images
