Chassis mount fuse block for general circuit protection, featuring a 600V voltage rating and 30A current capacity. This 2-pole, 2-circuit fuse holder accommodates 10mm x 38mm fuses and is constructed with UL94 V-0 rated thermoplastic for durability. It offers screw termination and copper alloy contacts with tin plating, ensuring reliable connections. Approved by UL and CSA, this black fuse block is designed for chassis or DIN rail mounting.
Package600
Voltage600V
Voltage Rating600V
Current Rating30A
Quick Jump:
Technical Specifications
Littelfuse L60030M2SQ technical specifications.
General
Approvals
UL, CSA
Body Material
Thermoplastic
Package/Case
600
Color
Black
Contact Material
Copper Alloy
Contact Plating
Tin
Current Rating
30A
Depth
76.2mm
Flammability Rating
UL94 V-0
Fuse Current
30A
Fuse Size
0.394 Dia x 1.496 L (10mm x 38mm)
Illumination Type
Illuminated
Lead Free
Lead Free
Length
38.15mm
Material
Thermoplastic
Mount
Chassis Mount, DIN Rail
Number of Circuits
2
Number of Poles
2
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
Series
L600
Termination
Screw
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Compliance
RoHS
Compliant
Datasheet
Littelfuse L60030M2SQ Datasheet
Download the complete datasheet for Littelfuse L60030M2SQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

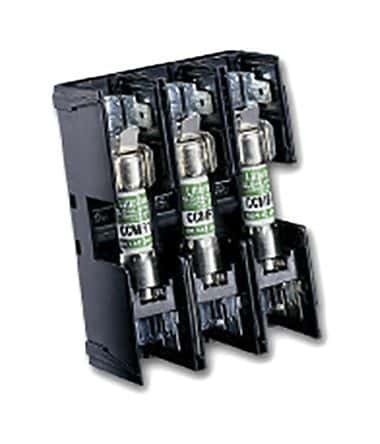

Product Images
