PackageTO-220-3
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Littelfuse L6004L3 technical specifications.
General
Package/Case
TO-220-3
Current Rating
4A
Height
15.75mm
Hold Current
5mA
Lead Free
Lead Free
Length
10.67mm
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Reach SVHC Compliant
No
RMS Current (Irms)
4A
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.78mm
Compliance
RoHS
Compliant
Datasheet
Littelfuse L6004L3 Datasheet
Download the complete datasheet for Littelfuse L6004L3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

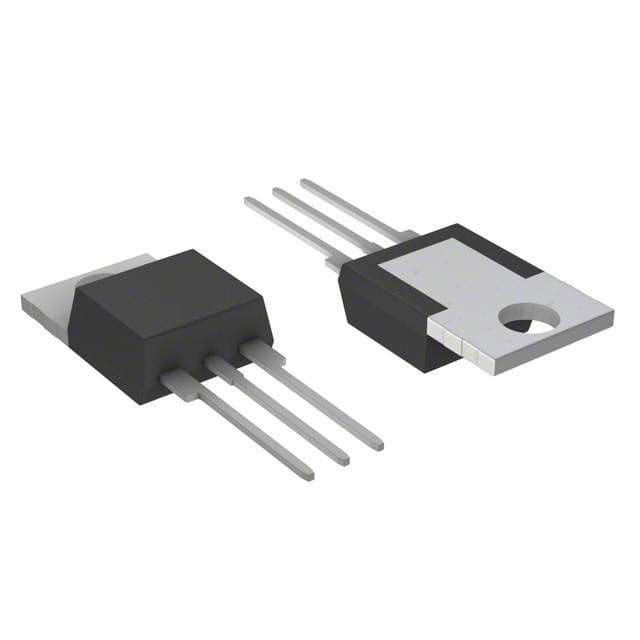

Product Images
