Littelfuse
P0220SALRP
Silicon Surge Protector, 32V V(BO) Max, 20A, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
Capacitance150pF
Current Rating2.2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Littelfuse P0220SALRP technical specifications.
General
| Capacitance | 150pF |
| Current Rating | 2.2A |
| Height | 2.45mm |
| Hold Current | 50mA |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 15V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 150A |
| RoHS Compliant | Yes |
| Series | SIDACtor® |
| Weight | 0.003386oz |
| Width | 3.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P0220SALRP Datasheet
Download the complete datasheet for Littelfuse P0220SALRP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

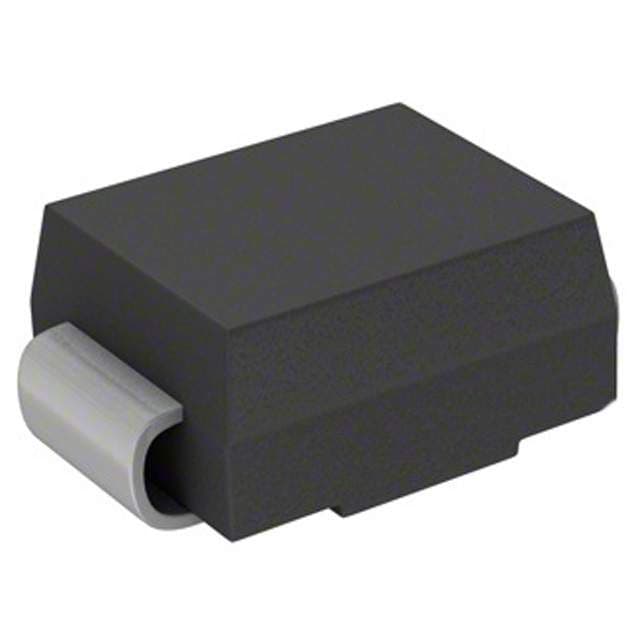

Product Images
