Littelfuse
P4KE7.5A-B
Trans Voltage Suppressor Diode, 400W, 6.4V V(RWM), Unidirectional, 1 Element, Silicon, DO-204AL, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN
PackageDO-41
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse P4KE7.5A-B technical specifications.
General
| Package/Case | DO-41 |
| Clamping Voltage | 11.3V |
| Diode Type | ZENER |
| Min Breakdown Voltage | 7.13V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 36.3A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 6.4V |
| Package Quantity | 500 |
| Packaging | Bulk |
| Peak Pulse Current | 36.3A |
| Peak Pulse Power | 400W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 6.4V |
| RoHS Compliant | Yes |
| Series | P4KE |
| Termination | Axial |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse P4KE7.5A-B Datasheet
Download the complete datasheet for Littelfuse P4KE7.5A-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

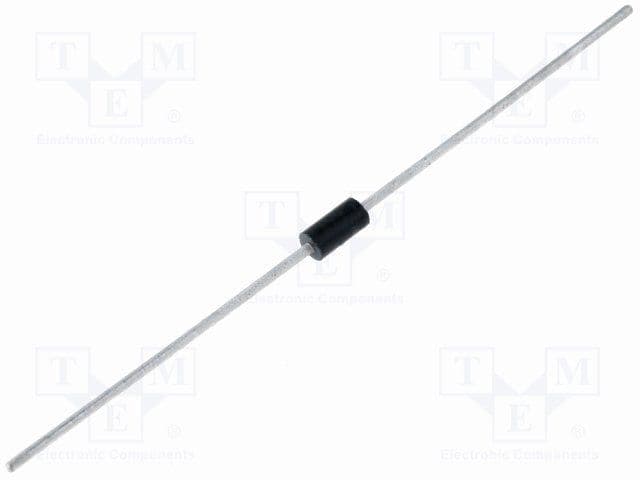

Product Images
