Unidirectional TVS diode for surge suppression, featuring a 185V operating supply voltage and 209V reverse breakdown voltage. This component offers a 328V clamping voltage and 600W peak pulse power dissipation, with a maximum surge current of 1.8A. Designed for through-hole mounting in a DO-204AC package, it operates across a wide temperature range of -55°C to 175°C. The device is lead-free and RoHS compliant.
PackageDO-204AC
MountingThrough Hole
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Littelfuse P6KE220A technical specifications.
General
Package/Case
DO-204AC
Clamping Voltage
328V
Clamping Voltage-Max
328V
Diameter
3.6mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
7.6mm
Max Breakdown Voltage
231V
Min Breakdown Voltage
209V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Surge Current
1.8A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
185V
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
1.9A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Reverse Breakdown Voltage
209V
Reverse Standoff Voltage
185V
RoHS Compliant
Yes
Series
P6KE
Termination
Axial
Compliance
RoHS
Compliant
Datasheet
Littelfuse P6KE220A Datasheet
Download the complete datasheet for Littelfuse P6KE220A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

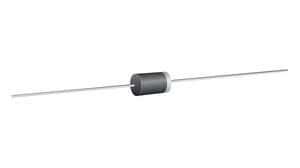

Product Images
