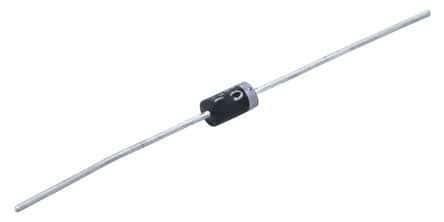

Unidirectional TVS Diode, DO-15 package, offering 600W peak pulse power and 518A peak current. Features a 6.8V DC rated voltage, 10.5V clamping voltage, and 5.8V operating supply voltage. With a breakdown voltage range of 6.45V to 7.14V and a low leakage current of 1uA, this component provides effective ESD protection. Operates across a wide temperature range from -55°C to 175°C, with 5W power dissipation. Through-hole mounting with axial termination.
PackageDO-15
Current518A
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Littelfuse P6KE6.8A technical specifications.
General
Package/Case
DO-15
Clamping Voltage
10.5V
Clamping Voltage-Max
10.5V
Current
518A
Diameter
3.6mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Lead Free
Lead Free
Leakage Current
1uA
Length
0.299inch
Max Breakdown Voltage
7.14V
Min Breakdown Voltage
6.45V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
5W
Max Surge Current
57A
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5.8V
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
6.6A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
64.6V
Reverse Standoff Voltage
58.1V
RoHS Compliant
Yes
Series
P6KE
Termination
Axial
DC Rated Voltage
6.8V
Compliance
RoHS
Compliant
Datasheet
Littelfuse P6KE6.8A Datasheet
Download the complete datasheet for Littelfuse P6KE6.8A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
